Product Overview
Advantages
We configure products to match the specific requirements of your intended usage environment.
A low-carbon, eco-friendly choice for modern green mobility.

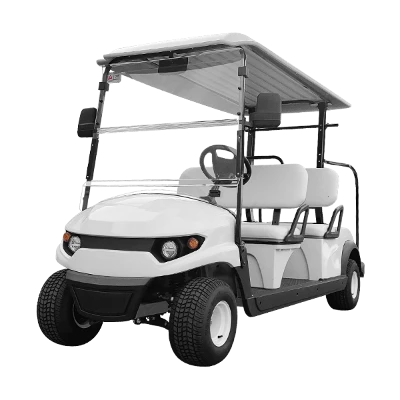

Four Seat Golf Specific Vehicle
The vehicle can be fitted with a solar lithium battery system, featuring a mature solar charging solution similar to those used in compact passenger vehicles. It enables hassle-free range performance by continuously charging in sunlight, extends battery service life, effectively reduces charge-discharge cycles, and lowers overall operating costs.
The cart can accommodate either four players and two caddies, or three players and three caddies, maximizing vehicle utilization and ensuring smooth, uninterrupted play on the course.
Constructed with high-grade welded aluminum alloy, it is equipped with comfortable luxury leather seats. Designed with ergonomic backrests and armrests, the cart delivers a spacious, comfortable ride for both driver and passengers.
Key Features
01
Caddy foot pedals
Lightweight, slightly elevated, and highly corrosion-resistant, with a non-slip surface to ensure safe and secure footing for caddies.
02
Sleek streamlined body design
This vehicle boasts a sleek, streamlined exterior design for a modern, attractive look. Its exterior components are manufactured using injection molding, vacuum forming and blow molding technologies, delivering exceptional strength and toughness.
03

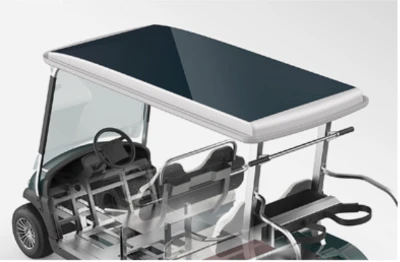

Solar roof
This solar-powered lithium golf cart integrates a flexible solar self-charging system, lithium battery, high-strength aluminum alloy frame, and a stable electronic control system, delivering exceptional range while being more eco-friendly, economical, and safer.
04
Hydraulic brake system
Equipped with a tandem dual-chamber master cylinder and an H-type dual-circuit design.In the event of a failure in either circuit of the dual-circuit hydraulic brake system, braking functionality remains intact to ensure safe operation.The system is highly reliable with a low failure rate.
Technical Specifications
| Maximum Speed | Forward:22km/h;Reverse:9km/h |
| Grade Ability | 40%(≈21.8°) |
| Turning Radius | ≤4m |
| Dimension | 3300×1220×1850(mm) |
| Wheelbase | 2500mm |
| Track | Front tire:870mm;Rear tire:985mm |
| Tay Load | 360kg |
| Frame | High strength Carbon steel/aluminum alloy frame |
| Suspension | Front Suspension: Macpherson independent suspension; Rear Suspension: Leaf spring and hydraulic shock absorbers |
| Brakes | Four wheel drum brake+Electronic parking brake(EM Brake) |
| Battery | Maintenance free battery Lithium iron phosphate battery |
| Drive Motor | AC motor 4KW/5KW |
| Controller | 48V/72V AC controller |
Vehicle StructureVehicle Structure
Body
Chassis
Canopy
Front bumper
Rear
bumper
Floor assembly
Wheel
Suspension
Shock absorber
Steering system
Brake system
Brake disc
01
Cooler Box
Assembly
02
Sand Bottle
Assembly
03
Bag Rain
Cover
04
Luxury
Seats
Customization Services
Vehicle color
Logo printing
Battery type
Seat material
Roof design
Tire type
Seat color
Wheel rim style
Glass type
Headlight design
Frame material
Brake system
Applications
Golf Courses
1
>>
Resorts and Hotels
2
>>
Tourist Attractions
3
>>
Residential Communities
4
>>
Shuttle services
5
>>
Gated communities
6
Frequently Asked Questions
What material is used for the vehicle frame?
+
-
Two options are available: a carbon steel integrated frame or a full aluminum alloy frame.
What battery comes standard on the vehicle, and what other battery options are available?
+
-
The vehicle comes standard with maintenance-free lead-acid batteries; lithium iron phosphate batteries are also available as an option.
Are the seat colors customizable?
+
-
Customization is available according to customer requirements.
What is the vehicle's control system?
+
-
The vehicle is equipped with an AC control system.
Manufacturing Capacity
30+
Factory History
200+
Number of Employees
5000+
Production Capacity
R&D Capability
30+
R&D personnel
50+
Testing Equipment
300+
Number of independent patent
Quality Control
ISO 9001 Certification
CE Certification 1
CE Certification 2
Five-star after-sales service
WMI Certificate
Provincial High-Tech Enterprise
Specialized and Innovative Certificate
