Product Overview
Advantages
We configure products to match the specific requirements of your intended usage environment.
A low-carbon, eco-friendly choice for modern green mobility.

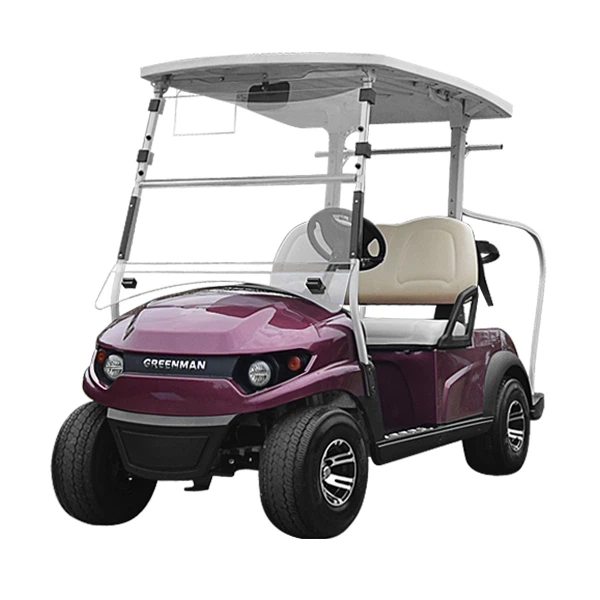

2 Seat golf car
2-Seat Golf Car: Equipped with MacPherson independent suspension, the same type used in passenger cars. It features spiral shock-absorbing springs that deliver excellent shock absorption and buffering performance, effectively dampening vibrations transmitted from the ground to the vehicle body for enhanced comfort.
Color-Matched Painting: The painting process involves applying primer, color coat, and clear coat in sequence. Combined with advanced color-matching technology, it fully showcases the product's agility and elegance. UV-resistant additives are integrated into the paint, ensuring it won't age or fade even after long-term exposure to sunlight.
Key Features
01
Sleek Design
Its streamlined design gives the GREENMAN CAR an agile and premium appearance, helping golf clubs set their fleet apart from ordinary vehicles.
02
Bumper
It is constructed from impact-resistant, automotive-grade engineering PP.
The hollow structure absorbs impact energy through deformation and rebound, effectively protecting the chassis frame from damage caused by collisions.
03

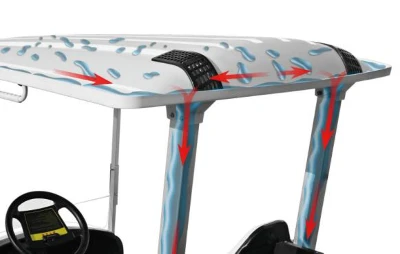

SUN CANOPY
Our canopy features a one-piece design that offers maximum coverage against sun and rain.
It is equipped with integrated drain spouts that direct water straight to the ground, keeping passengers and the storage basket dry.
04
High-Strength Aluminum Alloy Frame
For a comfortable and safe driving experience, our chassis is constructed from industry-leading aluminum alloy, which is significantly lighter than steel frames while delivering superior tensile and yield strength.
Technical Specifications
|
Maximum Speed |
Forward:22km/h;Reverse:9km/h |
|
Grade Ability |
40%(≈21.8°) |
|
Turning Radius |
≤3m |
|
Dimension |
2800×1250×1800(mm) |
|
Wheelbase |
1650mm |
|
Track |
Front tire:870mm;Rear tire:985mm |
|
Tay Load |
360kg |
|
Frame |
High strength aluminum /carbon steel integral frame |
|
Suspension |
Front Suspension: Macpherson independent suspension; Rear Suspension: Leaf spring and hydraulic shock absorbers |
|
Brakes |
Four-wheel hydraulic brakes system+Electronic parking brake(EM Brake) |
|
Battery |
Maintenance free battery/Lithium iron phosphate |
|
Drive Motor |
AC motor 4KW |
|
Controller |
48V AC controller |
Vehicle StructureVehicle Structure
Body
Chassis
Canopy
Front bumper
Rear
bumper
Floor assembly
Wheel
Suspension
Shock absorber
Steering system
Brake system
Brake disc
01
Cooler Box
Assembly
02
Sand Bottle
Assembly
03
Bag Rain
Cover
04
Luxury
Seats
Customization Services
Vehicle color
Logo printing
Battery type
Seat material
Roof design
Tire type
Seat color
Wheel rim style
Glass type
Headlight design
Frame material
Brake system
Applications
Golf Courses
1
>>
Resorts and Hotels
2
>>
Tourist Attractions
3
>>
Residential Communities
4
>>
Shuttle services
5
>>
Gated communities
6
Frequently Asked Questions
What is the cruising range of the 2-seater electric golf cart?
+
-
It has a cruising range of 80 km, subject to configuration requirements.
What battery comes standard on the vehicle, and what other battery options are available?
+
-
The vehicle comes standard with maintenance-free lead-acid batteries; lithium iron phosphate batteries are also available as an option.
Are the seat colors customizable?
+
-
Customization is available according to customer requirements.
What is the vehicle's control system?
+
-
The vehicle is equipped with an AC control system.
