Product Overview
Advantages
We configure products to match the specific requirements of your intended usage environment.
A low-carbon, eco-friendly choice for modern green mobility.

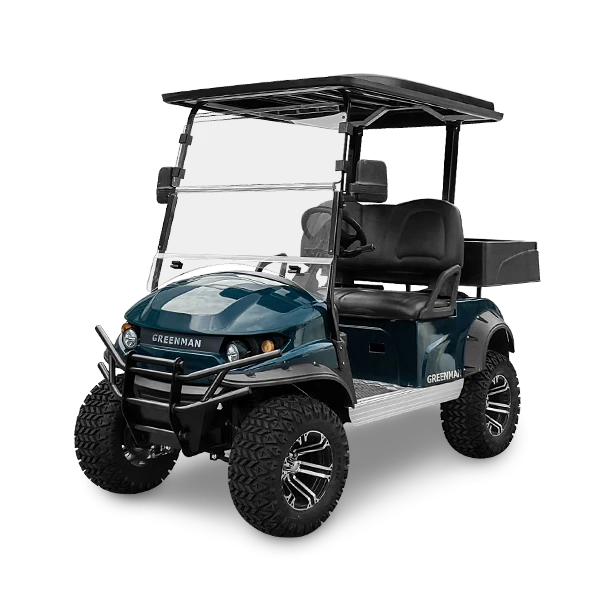

Electric Scenic Spot Specific Vehicle
The vehicle is equipped with integrated composite front headlights and dynamic daytime running lights, supporting stable driving after dark. The lamps feature excellent waterproof construction to prevent water ingress under humid and rainy conditions.
Waterproof enclosing rain curtains and retractable sunshades are available as optional add-ons for all-weather adaptability. Rain curtains can be quickly installed for smooth commuting on rural muddy roads in rainy weather. When out in bright sunshine, the retractable sunshade effectively blocks ultraviolet rays, offering cool, comfortable rides while you appreciate outdoor landscapes.
Illuminated side rearview mirrors are another optional accessory. Built-in auxiliary lights activate during night trips and turns, expanding rear field of vision and significantly upgrading overall driving safety.
Key Features
01
MCPHERSON INDEPENDENT SUSPENSION
As in your car suspension, we use spiral damping springs to eliminate the nuisance of vibration and shocks. Our suspension creates extra cushion for your seat.
02
TRACTION MOTOR
Motor features one of the industry's best responsiveness to speed controller, and enable GREENMAN CAR equally smooth ride in hilly or flat terrain.
03
BEEFED UP TRANSAXLE
The integrated pressure-die-casting aluminum gearbox housing is tightly sealed; Power is transmitted via mesh and involute teeth bevel gears, which generate steady output torque, lower noise and much better efficiency.
04
CURTIS CONTROLLER
We specified Curtis model that are bundled with Charging protection and Anti Skipping regenerating braking to provide customers with more safety redundancy downhill riding.
Technical Specifications
|
Maximum Speed |
Forward:30km/h;Reverse:12km/h |
|
Grade Ability |
22%(≈12.4°) |
|
Turning Radius |
≤3.5m |
|
Dimension |
2750×1300×2100(mm) |
|
Wheelbase |
1700mm |
|
Track |
Front tire:985mm;Rear tire:985mm |
|
Tay Load |
Load of hopper: 100kg;Driving load: 180kg
|
|
Frame |
High strength Carbon steel/aluminum alloy frame
|
|
Suspension |
Front Suspension: Macpherson independent suspension; Rear Suspension: Leaf spring and hydraulic shock absorbers |
|
Brakes |
Four wheel disc brake+electronic parking
|
|
Battery |
Maintenance free battery/Lithium iron phosphate battery
|
|
Drive Motor |
AC motor 5KW |
|
Controller |
48V/72V AC controller |
Vehicle StructureVehicle Structure
Body
Chassis
Canopy
Front bumper
Rear
bumper
Floor assembly
Wheel
Suspension
Shock absorber
Steering system
Brake system
Brake disc
01
Cooler Box
Assembly
02
Sand Bottle
Assembly
03
Bag Rain
Cover
04
Luxury
Seats
Customization Services
Vehicle color
Logo printing
Battery type
Seat material
Roof design
Tire type
Seat color
Wheel rim style
Glass type
Headlight design
Frame material
Brake system
Applications
Golf Courses
1
>>
Resorts and Hotels
2
>>
Tourist Attractions
3
>>
Residential Communities
4
>>
Shuttle services
5
>>
Gated communities
6
Frequently Asked Questions
What material is used for the vehicle frame?
+
-
High strength Carbon steel/aluminum alloy frame
What battery comes standard on the vehicle, and what other battery options are available?
+
-
The vehicle comes standard with maintenance-free lead-acid batteries; lithium iron phosphate batteries are also available as an option.
Are the seat colors customizable?
+
-
Customization is available according to customer requirements.
What is the vehicle's control system?
+
-
The vehicle is equipped with an AC control system.
Manufacturing Capacity
30+
Factory History
200+
Number of Employees
5000+
Production Capacity
R&D Capability
30+
R&D personnel
50+
Testing Equipment
300+
Number of independent patent
Quality Control
ISO 9001 Certification
CE Certification 1
CE Certification 2
Five-star after-sales service
WMI Certificate
Provincial High-Tech Enterprise
Specialized and Innovative Certificate
