Product Overview
Advantages
We configure products to match the specific requirements of your intended usage environment.
A low-carbon, eco-friendly choice for modern green mobility.

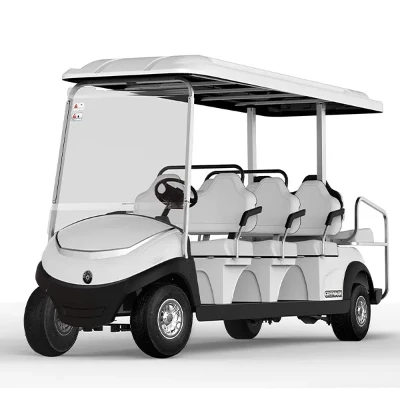

Electric Scenic Spot Specific Vehicle
Mini shuttle bus,Car lights/grille, using a combination of car style headlights, equipped with high and low beams, turn signal lights, to enhance vehicle safety and driving experience. The lens type circular lamp integrates a fluorescent lamp and a high beam lamp, with high transparency and a long illumination distance. The rear taillights can provide clear indications when braking, making driving safer in low light environments. Laser carved mesh, with high-end quality and uniqueness.
The entire vehicle can be equipped with two-point or three-point seat belts to ensure the safety of passengers while driving, improving the safety and reliability of the vehicle. Allowing customers to experience the comfort of galloping in the wind, away from the hustle and bustle of the city, and experiencing a different scenery.
The last row of seats can be folded when not in use, and can be placed flat to carry items. There is a storage box under the seats, which provides storage space for items that come with the car.
Key Features
01
MCPHERSON INDEPENDENT SUSPENSION
As in your car suspension, we use spiral damping springs to eliminate the nuisance of vibration and shocks. Our suspension creates extra cushion for your seat.
02
TRACTION MOTOR
Motor features one of the industry's best responsiveness to speed controller, and enable GREENMAN CAR equally smooth ride in hilly or flat terrain.
03B
BEEFED UP TRANSAXLE
The integrated pressure-die-casting aluminum gearbox housing is tightly sealed; Power is transmitted via mesh and involute teeth bevel gears, which generate steady output torque, lower noise and much better efficiency.
04
CURTIS CONTROLLER
We specified Curtis model that are bundled with Charging protection and Anti Skipping regenerating braking to provide customers with more safety redundancy downhill riding.
Technical Specifications
|
Maximum Speed |
Forward:22km/h;Reverse:9km/h |
|
Grade Ability |
15%(≈8.5°) |
|
Turning Radius |
≤5.5m |
|
Dimension |
4600×1250×2000(mm) |
|
Wheelbase |
3300mm |
|
Track |
Front tire:880mm;Rear tire:1000mm |
|
Tay Load |
880kg |
|
Frame |
carbon steel integral frame |
|
Suspension |
Front Suspension: Macpherson independent suspension; Rear Suspension: Leaf spring and hydraulic shock absorbers |
|
Brakes |
Four-wheel hydraulic brakes system+Electronic parking brake(EM Brake) |
|
Battery |
Maintenance free battery/Lithium iron phosphate |
|
Drive Motor |
AC motor 5KW |
|
Controller |
48V/72V AC controller |
Vehicle StructureVehicle Structure
Body
Chassis
Canopy
Front bumper
Rear
bumper
Floor assembly
Wheel
Suspension
Shock absorber
Steering system
Brake system
Brake disc
01
Cooler Box
Assembly
02
Sand Bottle
Assembly
03
Bag Rain
Cover
04
Luxury
Seats
Customization Services
Vehicle color
Logo printing
Battery type
Seat material
Roof design
Tire type
Seat color
Wheel rim style
Glass type
Headlight design
Frame material
Brake system
Applications
Golf Courses
1
>>
Resorts and Hotels
2
>>
Tourist Attractions
3
>>
Residential Communities
4
>>
Shuttle services
5
>>
Gated communities
6
Frequently Asked Questions
What material is used for the vehicle frame?
+
-
Aluminum alloy frame and carbon steel frame are optional for the entire vehicle.
What battery comes standard on the vehicle, and what other battery options are available?
+
-
The vehicle comes standard with maintenance-free lead-acid batteries; lithium iron phosphate batteries are also available as an option.
Are the seat colors customizable?
+
-
Customization is available according to customer requirements.
What is the vehicle's control system?
+
-
The vehicle is equipped with an AC control system.
Manufacturing Capacity
30+
Factory History
200+
Number of Employees
5000+
Production Capacity
R&D Capability
30+
R&D personnel
50+
Testing Equipment
300+
Number of independent patent
Quality Control
ISO 9001 Certification
CE Certification 1
CE Certification 2
Five-star after-sales service
WMI Certificate
Provincial High-Tech Enterprise
Specialized and Innovative Certificate
