Product Overview
Advantages
We configure products to match the specific requirements of your intended usage environment.
A low-carbon, eco-friendly choice for modern green mobility.

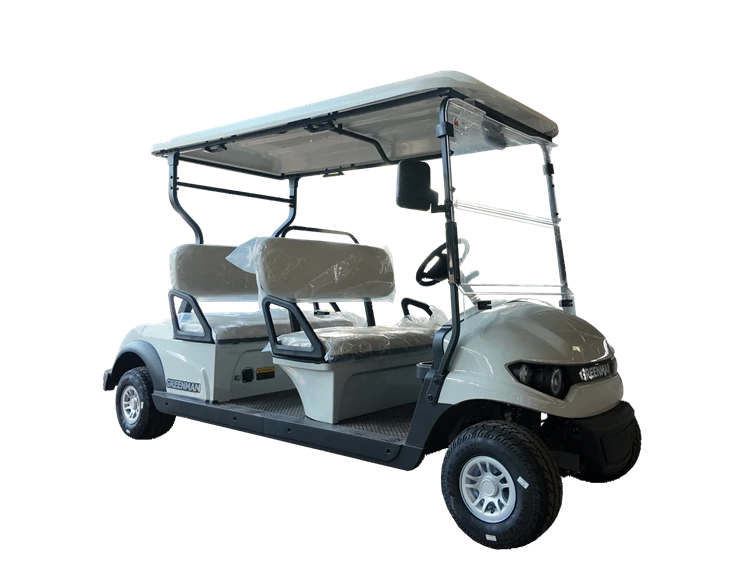

Electric Scenic Spot Specific Vehicle
This four-seat electric vehicle supports multiple practical optional upgrades to elevate your driving comfort and safety.
You may opt for a loud warning horn and multi-color ambient interior lights. The heavy-duty loud horn delivers louder alert signals to boost driving safety on all road conditions. The customizable color-shifting ambient lights add distinctive styling highlights to the cabin and greatly upgrade your overall riding experience.
Waterproof rain curtains and retractable sun canopies are also available as optional add-ons. When it rains, install the waterproof rain curtains to drive smoothly even on bumpy rural roads without being disturbed by rainwater. On sunny days, fit the retractable sunshade to block harsh sunlight while you soak in stunning outdoor landscapes. It perfectly balances sun protection and sightseeing fun, allowing you to roam freely amid natural scenery and fully embrace the joy of outdoor travel.
Key Features
01
MCPHERSON INDEPENDENT SUSPENSION
As in your car suspension, we use spiral damping springs to eliminate the nuisance of vibration and shocks. Our suspension creates extra cushion for your seat.
02
TRACTION MOTOR
Motor features one of the industry's best responsiveness to speed controller, and enable GREENMAN CAR equally smooth ride in hilly or flat terrain.
03
BEEFED UP TRANSAXLE
The integrated pressure-die-casting aluminum gearbox housing is tightly sealed; Power is transmitted via mesh and involute teeth bevel gears, which generate steady output torque, lower noise and much better efficiency.
04
CURTIS CONTROLLER
We specified Curtis model that are bundled with Charging protection and Anti Skipping regenerating braking to provide customers with more safety redundancy downhill riding.
Technical Specifications
| Maximum Speed | Forward:22km/h;Reverse:9km/h |
| Grade Ability | 40%(≈21.8°) |
| Turning Radius | ≤4m |
| Dimension |
3300×1220×1850(mm)
|
| Wheelbase | 2500mm |
| Track | Front tire:870mm;Rear tire:985mm |
| Tay Load | 360kg |
| Frame |
High strength Carbon steel/aluminum alloy frame
|
| Suspension |
Front Suspension: Macpherson independent suspension; Rear Suspension: Leaf spring and hydraulic shock absorbers |
| Brakes |
Four wheel drum brake+Electronic parking brake(EM Brake)
|
| Battery |
Maintenance free battery/Lithium iron phosphate battery
|
| Drive Motor | AC motor 4KW/5KW |
| Controller | 48V/72V AC controller |
Vehicle Structure Vehicle Structure
REAR SUPPORT OF ROOF
High strength aluminum alloy is used to support the golf cart in case of rollover, so as to protect the safety of drivers and passengers to the best of ability.
FRONT BUMPER
Made of high-strength blow-molded hollow plastic. It deforms to absorb impact and rebounds automatically, avoiding frame damage and protecting riders.
REAR AXLE
Integral die-cast aluminum gearbox housing with excellent sealing. Involute helical gears deliver steady torque, low noise and efficient transmission.
INDEPENDENT SUSPENSION
Automotive-grade McPherson independent suspension with coil dampers absorbs road vibration for smooth rides.
ALUMINUM ALLOY WHEEL HUB
Stylish, beautiful, solid and durable, corrosion resistant and not easy to oxidize and rust,especially suitable for the sea damp and alkaline environment.
HYDRAULIC BRAKING SYSTEM
Fitted with tandem dual-chamber master cylinder & H-type dual-circuit brakes. One circuit failure won't disable braking for safe, reliable operation.
LEAF SPRING
The whole vehicle adopts variable cross-section steel plate springs, which have better shock absorption performance and comfort.
ELECTRONIC PARKING BRAKE
Applications
This electric sightseeing cart fits golf courses, luxury communities, resorts, scenic spots, campuses and industrial parks, providing eco-friendly shuttle and patrol transport for all kinds of venues
Golf Courses & Private Clubs
Silent turf-friendly operation + long single-charge range + customizable logo → Stable all-day service & elevated club brand image, reduce guest complaints about vehicle breakdowns.
Luxury Resorts & Hotels
Waterproof seats + full weather canopy + multi-color options → Comfortable guest shuttle in rain & sun, upgrade resort high-end positioning.
Gated Luxury Communities
Heavy-duty durable frame + anti-rust alloy wheels + low maintenance → Cut community property daily repair labor costs, stable long-term patrol & shuttle service.
Scenic Spots & Theme Parks
Smooth quiet ride + easy-to-clean seats + large range → Continuous peak-hour passenger transport, no sudden vehicle outage disrupting tourist flow.
01
Cooler Box
Assembly
02
Sand Bottle
Assembly
03
Bag Rain
Cover
04
Luxury
Seats
Customization Services
Vehicle color
Logo printing
Battery type
Seat material
Roof design
Tire type
Seat color
Wheel rim style
Glass type
Headlight design
Frame material
Brake system
Greenman Electric Vehicle Co., Ltd., subsidiary of Greenman Machinery Company, specializes in R&D, manufacturing and sales of off-highway electric vehicles. We keep innovating to launch high-performance, premium models with proprietary patented technologies. Our 20,000 sq.m production base is situated in Huai'an, Jiangsu Province.
Founded in 2000 and accredited by Beijing Municipal Science & Technology Commission, Greenman's R&D Institute boasts strong R&D, testing and pilot production capacity; as a National High-tech Enterprise, GREENMAN New Energy owns WMI certificate, five-star after-sales certification, CE and ISO9001 quality system certifications.
R&D personnel
Testing Equipment
Number of independent patent
Production Capacity
Quality Control
ISO 9001 Certification
CE Certification
Five-star After-sales
WMI Certificate
Provincial High-tech Enterprise
Specialized and Innovative Certificate
Frequently Asked Questions
Q:1.What's the max cruising range?
A:Up to 80km per full charge; longer uninterrupted operation reduces spare vehicle investment.
Q:2.Battery options?
A:Standard maintenance-free lead-acid; optional lithium iron phosphate for 5-year long warranty & lower long-run maintenance cost.
Q:3.Can seat colors & appearance be customized?
Full OEM/ODM customization available to match your venue brand and stand out from competitors.
Q:4.What is the Minimum Order Quantity?
A:1 full FCL 20GP general cargo container, partial container shipments are not permitted
Q:5.What warranty coverage do we provide for this vehicle model?
Main components come with a 2-year warranty, and lithium batteries are covered under a 5-year warranty. Consumable vulnerable parts such as tires, glass and fuses are not included in the warranty scope.
Q:6.What is the production lead time?
Production lead time ranges from 20 to 30 working days upon receipt of your formal deposit and confirmed order specifications
